Description

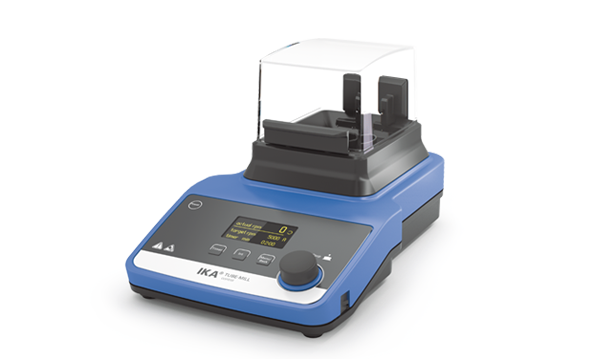

IKA Tube Mill 100 control
- Clear and multilingual OLED display (incl. error code display)
- Timer, adjustable from 5s – 3 min
- USB interface (control and document all parameters)
- Interval operation optional
- Infinitely variable speed (5,000 – 25,000 rpm)
- Various operating modes
- Adjustable safety speed and time
- Programmable and storable test conditions
- Reproducible test results
- Touch keypad
- Scope of delivery includes grinding chambers: 1 x MT 40; 1 x MT 100 and 1 x MMT 40
Technical Data
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input | 100 W |
| Motor rating output | 80 W |
| Speed range | 5000 – 25000 rpm |
| Speed deviation | 2 ±% |
| Circumferential speed max. | 65 m/s |
| Useable volume max. | 100 ml |
| Feed hardness max. | 5 Mohs |
| Feed grain size max. | 10 mm |
| Power-ON time | 3 min |
| Mill feed can be cooled in milling chamber with dry ice | yes |
| Dimensions (W x H x D) | 180 x 212 x 300 mm |
| Weight | 2.8 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | yes |
| Voltage | 220 – 240 / 100 – 120 / 100 V |
| Frequency | 50/60 Hz |
| Power input | 100 W |
