IKA KS 4000i control

IKA KS 4000i control

IKA KS 4000i control

– Large LED display for speed and time settings
– Controls with antimicrobial coating for reduction of bacteria
– Integrated PID temperature control (use of two PT 1000 temperature sensors)
– Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60 (included with delivery)
– Electronic temperature and speed control
– Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
– Unit stops automatically when hood is lifted
– Collecting tray with drain hose on rear of unit
– Simple operation
– All functions can be controlled and documented using the labworldsoft® software
– Attachments not included – please order accessories as required



Type of movement orbital
Shaker diameter 20 mm
Permissible shaking weight (incl. attachment) 20 kg
Motor rating input 82 W
Motor rating output 24 W
Permissible ON time 100 %
Speed min (adjustable) 10 rpm
Speed range 10 – 500 rpm
Speed display LED
Timer yes
Timer display 7 segment LED
Time setting range 1 – 59940 min
Operating mode timer and continuous operation
Touch function no
Shaking table lock no
Working with microtiter plates no
Heating temperature range room temp. +5° – 80 °C
Heat output 1000 W
Temperature display yes
Temp. stability (0,2l H2O; RT 25°C, T=37°C) 0.1 ±K
Dimensions (W x H x D) 580 x 525 x 750 mm
Weight 50 kg
Permissible ambient temperature 15 – 32 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 30
RS 232 interface yes
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 1120 W

Memmert CO2 Incubator 108L

Memmert CO2 Incubator 108L

Ventilation and Control

  • uniform atmosphere and temperature distribution owing to enclosed, non-turbulent ventilation system in working chamber
  • adaptive, fuzzy-supported, multifunctional, digital microprocessor PID-controller
  • integral fault diagnostics on temperature, CO2 and humidity limit control
  • 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
  • digital 7-day-programme-timer with real time clock, precise minute setting
  • digital display (LED) of all set parameters, such as temperature, weekdays, time, CO2, humidity and set-up values – language to be chosen in setup
  • CO2-supply via sterile filter
  • digital electronic CO2 control with automatic zeroing (infrared measuring system) – range of adjustment 0-10% – resolution 0,1%
  • intrinsic adjustment of altitude above sea level
  • CO2-supply being interrupted upon door opening
  • digital display of set and actual values (LED) of temperature (0,1 °C resolution) and of CO2-concentration (0,1%)
  • integrated humidity limit control (88-97%) with digital display of relative humidity – resolution of display: 0,5%, setting accuracy: 1%
  • programme stored on power failure
  • chip card (STERICard) for sterilisation of working chamber with fixed cycle (4 hrs./160 °C) without removal of sensors and mountings

Heating  Concept

  • large-area multi-function heating system with additional door and back heating to avoid condensation
  • incl. works calibration certificate for +37 °C

Multiple Overtemperature Protection

  • with audible and visual alarm in case of over-/undertemperature and over-/under-CO2, open door and empty gas cylinder
  • independently working, digitally adjustable electronic overtemperature controller TWW protection class 3.1
  • additional integral over- and undertemperature monitor “ASF” (Auto-Safety-Function) automatically following the setpoint value at a preset tolerance range; audible alarm is activated in case of over- or undertemperature, heating is switched off in case of overtemperature
  • resolution of display and setting accuracy: 0,1 °C
  • mechanical temperature limiter TB protection class 1 switching the heating off at approx. 10 °C above max. oven temperature

Textured Stainless Steel Casing

  • w x h x d: 710 x 778 x 550 mm
  • fully insulated stainless steel door with double locking and 4-point adjustment
  • inner glass door with opening (8 mm dia.) to take gas samples
  • rear zinc-plated steel

Interior

  • w x h x d: 560 x 480 x 400 mm, 108 l
  • easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), hermetically welded
  • 2 perforated stainless steel shelves, 1 stainless steel water dish

Temperature Range

  • from +20 °C (however, at least 8 °C above ambient temperature) up to + 50 °C
  • temperature variation in time: < +/-0,1 °C (to DIN 12 880: 2007-05)
  • temperature uniformity in chamber at 37°C: < +/- 0.3 °C (to DIN 12 880: 2007-05)

Voltage / Power Rating

  • 230 V (+/- 10%), 50/60 Hz
  • ca. 1.000 W (during heating)

Esco Biological Safety Cabinet

The Industry’s Most Certified Biological Safety Cabinet

The Industry’s Most Certified Biological Safety Cabinet

Esco’s Labculture® Class II Type A2 Biological Safety Cabinet combines a multitude of design, construction and proprietary technological considerations to bestow optimum operator, product and environmental protection. Utilizing 2 minipleat ULPA filters which operate at a typical efficiency of 99.999%, these surpass the conventional HEPA filters in contamination protection. It features a 10-degree sloped front for maximum operator comfort. A 1-piece stainless steel workzone and the absence of screws or connectors in the work zone facilitate ease of cleaning. The Isocide™ antimicrobial powder coating eliminates surface bacteria within 24 hours of exposure.

The Labculture is the industry’s most certified biosafety cabinet, tested and certified to these international standards:

  • NSF certified to NSF/ANSI 49
  • HPA certified to EN 12469
  • SFDA certified to YY0569
  • JACA certified to JIS K3800

Esco

VELP Advanced Vortex Mixer – ZX3



VELP Advanced Vortex Mixer – ZX3

Vortex mixer with adjustable stirring speed, with touch or continuous mode. The best-seller!

foto di Advanced Vortex Mixer - ZX3

The ZX3 is a modern and universal vortex mixer with variable stirring speed and two operating modes, touch or continuous.
The technopolymer structure ensures optimum chemical resistance and enhanced handling.
The ergonomic and highly innovative design along with the zinc base ensure an excellent stability on the bench, usable on many surfaces.
The best-seller ZX3 offers an excellent flexibility, thanks to the broad range of accessories, ideal for many applications including mixing of many kind of tubes/containers.
Incredibly adjustable and long-lasting, ZX3 offers the highest performance for an excellent mixing.

Electronic speed regulation:
up to 3000 rpm

Operating modes:
touch, continuous

GENERAL FEATURES
Construction material: zinc alloy and technopolymer
Support system: 4 anti-sliding feet
Orbital diameter: 4.5 mm
Speed setting: analog
Speed control: electronic
Speed: up to 3000 rpm
Operating modes: touch, continuous
Electronic protection degree CEI EN 60529: IP 42
Power: 15 W
Weight: 2.7 Kg (5.9 lb)
Dimensions (WxHxD): 150x130x165 mm (5.9×5.1×6.5 in)

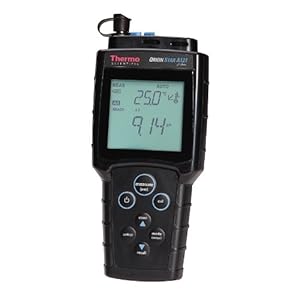

Thermo Scientific Orion Star A121 pH Portable Meter

Thermo Scientific Orion Star A121 pH Portable Meters combine simplicity with accuracy. A large LCD displays pH or mV readings along with temperature. Icons provide quick updates on battery life, electrode status and calibration information. Simple button layout and onscreen messages help with calibration and setup menu choices.

  • Large, informative screen clearly shows the main information, including pH or mV reading, temperature in °C or °F, meter mode, calibration information and battery life
  • Don’t miss a reading – AUTOREAD* locks in the stable reading on your screen and ready indicator alerts when readings are stable
  • Up to 3 point pH calibration
  • Automatic recognition of USA/NIST and DIN buffers
  • Easily recall calibration slope data for procedure checksNon-volatile memory holds up to 50 data points
  • Four AA batteries (included) provide over 2000 hours of operation or purchase the universal power adapter (sold separately) to run meter on AC power
  • Perfectly portable, waterproof and protected to take anywhere with a IP67-rated housing

Specifications
Model Orion Star A121 pH Portable Meter
pH Mode
Range -2.00 to 16.00
Resolution 0.1, 0.01
Relative Accuracy ±0.01
Calibration Points up to 3
mV Mode
Range mV:±1600.0 mV ;RmV: ±1999.9 mV
Resolution 0.1
Relative Accuracy ±0.2 mV or ±0.05% of reading whichever is greater
Calibration Points 1
Temperature Mode
Range -5 to 105
Resolution 0.1
Relative Accuracy ±0.1
Display Custom LCD; simultaneous display of measurement and temperature with helpful indicator icons
Inputs/Outputs
Inputs BNC, 8-pin mini-DIN
Sensor Type pH or ORP electrode, temperature probe
Data Management 50 points
Environmental Operating Conditions
Ambient Operating Temperature 5 to 45°C
Relative Humidity 5 to 85% noncondensing
Power Supply Four AA
Battery Life 2000 hours
