by williamsu | Oct 15, 2012 | Product News
Mettler Toledo AL204
Accurate analytical balances incrementing in 0.0001 grams division for high precision readings. Switch weighing units to: g, kg, mg, ct, lb, oz, ozt, GN, dwt, momme, mesghal, tael, tical, tola, and baht. Laboratory scientific balances from Mettler Toledo come with built-in below balance weighing hook for weighing flexibility.
AL Lab Analyticals 4 decimal place balances come standard with weighing pan level indicator and glass draft shield for precision weighing results. Mettler-Toledo Analytical Lab Balance feature parts counting, percent weighing, calculation with a custom free factor, ± weighing modes, and dynamic weighing modes. Mettler Analytical Balances offer protection against dust and water, 18/10 chromium-nickel steel weighing pan, and painted die cast aluminum housing bases for extra durability.
Searching for practical, simple to operate analytical scales? Mettler Toledo AL Series Analyzing Balances offer handy, compact design and all necessary features analytical weighing scales need. Affordable and easy to use Mettler Toledo Analytical Balances are the preferred weighing solution in laboratories, pharmacies, drug discovery weighing applications, or universities.
Choose from 3 Mettler Toledo Analytical Balance models with specifications of: 51 g x 0.0001 g, 110 g x 0.0001 g, or 210 g x 0.0001 g. Each analytical scales comes with glass draft guard for precision weighing results.
Capacity x Readability(gram) |
210 g x 0.0001 g |
| Repeatability |
0.0001 g |
| Linearity(±) |
0.0003 g |
| Sensitivity Drift ppm / °C |
2.5 |
| Stabilization Time(s) |
4.0 seconds |
| External Mass Weight |
200 grams |
| Housing Base Construction |
Standard die-cast aluminum |
| Units |
g, kg, mg, ct, lb, oz, ozt, GN, dwt, momme, mesghal, tael, tical, tola, bath |
| Below Balance Hook |
use for weighing below the balance |
| Operating Temperature |
5°C – 40°C |
| Battery |
NO – AC Adapter only |
| Level Indicator |
Yes |
| Number of Leveling Screws |
2 |
| Display |
Large high-contrast LCD display for maximum ease of reading |
| Max Ht. Above Weighing Pans |
220 mm |
| Shipping Dimensions(WxDxH) |
520 mm x 385 mm x 555 mm |
External Balance
Dimensions(WxDxH) |
238 mm x 335 mm x 364 mm |
| Automatic Shut-Off |
Yes |
| Platform Size |
Ø 90 mm |
| Weighing Pan |
18 / 10 chromium-nickel steel |
| Shipping Weight (kilogram) |
8.2 kg |
by williamsu | Oct 3, 2012 | Product News
GYROZEN MicroCentrifuges 1730R
|
|
| Feature |
 Max. 17,000 rpm/27,237 g with 24-hole microrotor |
| Max. 30 microtubes, 64 PCR tubes |
| Strong, triple laminated ABS/Steel door with auto-lock function |
| High capacity, strong compressor ensures fast cooling of chamber and samples |
| Fast cool down function- reach 4℃ within 5 minutes |
| Compressor cut-off when door is open, minimizes frosting |
| LCD display of speed, remaining time, and temperature |
| Time setting to 99 min 59 sec or continuous |
| 5 acceleration and 6 deceleration ramps |
| “Pulse” key for quick runs |
| Automatic recognition and alarms for imbalance, over-speed, and over-heat |
| Program memory for up to 100 programs |
| Select a 24 or 30 position, autoclavable rotor with O-ring sealed lid |
| Optional PCR rotor for 8 strips |
| Optional adaptors for 0.5 ml or 0.2 ml microtubes |
|
|
| Applications |
All kinds of molecular biology experiments such as Ethanol precipitation, phenol extraction, NA preparation, cell-down, etc.
Simple spin-down of temperature sensitive reaction mixtures. |
|
| Technical Specifications |
| Max. RPM/RCF |
17,000/27,237 xg |
| Max. capacity |
30 x 2.0 ㎖, 8 x 8-tube PCR strips |
| Temp. range (℃) |
-20~+40 |
| FAST COOL button |
Yes |
| Time control |
Pulse, timed < 100 min or continuous |
| RPM/RCF conversion |
Yes |
| Noise level (dB) |
≤ 56 dB |
| Acc/Dec (sec) |
5/6 steps |
| Program memory |
100 |
| Rotor identification |
Automation |
| Imbalance cut off |
Yes |
| Display |
Blue LCD |
| Safety lid lock |
Yes |
| Lid drop protection |
Yes |
| Automatic door release at completion |
Yes |
| Power supply (V/Hz) |
220/50~60 (110V optional) |
| Power requirement (VA) |
2.0 |
| Dimension (W x D x H, mm) |
310 x 620 x 265 |
| Weight without rotor (Kg) |
43 |
| CE mark |
Yes |
| Cat. No. |
GZ-1730R |
|
|
| Rotor & Accessories |
 |
Fixed Angle Rotor, GRF-M-m2.0-24
24 x 1.5/2.0 ㎖ 45o Hole diameter (mm) : 11.1 Max. height for tube fit (mm) : 46 Supplied with aerosol tight O-ring |
 |
Fixed Angle Rotor, GRF-M-m2.0-30
30 x 1.5/2.0 ㎖ 45o Hole diameter (mm) : 11.1 Max. height for tube fit (mm) : 46 Supplied with aerosol tight O-ring |
| Tube |
 |
 |
 |
| Tube capacity(㎖) |
0.2 |
0.5 |
1.5/2.0 |
| Adaptor |
 |
 |
None |
| Cat. No. |
GAS-m0.2(2) |
GAS-m0.5(2) |
– |
| Adaptor bore (Фx L, mm) |
6.5 x 23 |
8 x 31 |
– |
| Radius(mm) |
67/79 |
73/86 |
84.3/96.4 |
| Max. RPM |
17,000/14,000 |
| Max. RCF(g-force) |
21,648/17,311 |
23,910/18,845 |
27,237/21,124 |
|
|
|
|
 |
PCR Rotor, GRF-M-s0.2-64
8 x 8-tube PCR strips, 64 x 0.2 ㎖ 45o Hole diameter (mm) : 6.5 Max. height for tube fit (mm) : 16 |
| Tube |
 |
 |
| Tube capacity(㎖) |
8-tube PCR strip |
0.2 |
| Radius(mm) |
1열 : 58.6 / 2열 : 67.1 |
| Max. RPM |
12,500 |
| Max. RCF(g-force) |
1열 : 10,237 / 2열 : 11,722 |
|
|
|
|
|
|
|
|
|
|
by williamsu | Oct 2, 2012 | Product News
Mettler Toledo JP303G
| Designed to meet the needs of gold trade users, the range includes models intended for everyday use by goldsmiths, jewelry manufacturers and retailers, high-precision models for assay offices and hallmarking, and a high-capacity line for weighing larger quantities in metal refining and inventory taking.
More features as standard: Fully automatic time- and temperature-controlled internal adjustment (FACT) for peace of mind. A high contrast HCD display for maximum readability. Two RS232 interfaces for simultaneous connection of an auxiliary display and printer or PC. Built-in density determination software. |
|
 |
| Technical Specifications |
|
|
Documentation |
|
|
|
|
|
|
| Maximum capacity – 320 g |
|
|
Operation Instruction (pdf) |
|
| Readability – 0.001 g |
|
|
Brochure (pdf) |
|
| Calibration – Internal, FACT |
|
|
Datasheet (pdf) |
|
|
|
|
|
|
| More… |
|
|
More…
|
|
|
Features and Benefits
Automatic adjustment with FACT & MonoBloc
- MonoBloc weighing technology guarantees long operation life and extreme ruggedness
- FACT automatically adjusts the balances using internal weights, whenever changes in temperature affect the accuracy of your weighing results
|
 |
|
Maximum Operational Features
- High contrast HCD display
- Built-in density determination application
- 8 standard applications built-in
- 2x RS232 interfaces
|
|
| Limit values |
|
| Maximum capacity |
320 g |
| Readability |
0.001 g |
| Repeatability (at nominal load) |
0.001 g |
| Linearity deviation |
0.002 g |
| Sensitivity temperature drift |
3 ppm/°C |
|
|
| Typical values |
|
| Repeatability (at nominal load) |
0.0007 g |
| Minimum sample weight (acc. to USP) |
2 g |
| Minimum sample weight (U=1 %, k=2) |
0.14 g |
| Minimum sample weight OIML |
0.02 g |
| Settling time |
1.5 s |
| Internal adjustment |
yes, FACT |
| Weighing technology |
MonoBloc |
| Interfaces |
2 ( COM1, COM2) |
| Balance dimensions (W x D x H) |
193x290x266 mm |
| Weighing pan dimensions |
ø 120 mm |
| Usable height of draft shield |
165 mm |
| Weight of balance |
3.7 kg |
|
|
| Weights for routin testing |
|
| Large Weight/Class OIML/ASTM |
200 g / F2/4 |
| Small Weight/Class OIML/ASTM |
10 g F1/3 |
by williamsu | Sep 26, 2012 | Product News
Iramac would like to promote you the economic FB-1310M-33 Themolyne 1.3 litre furnace. The product has ceramic fiber that permits faster heat-up, reduces energy consumption. Besides, with embedded heating element on top and both sides help improves temperature uniformity. It operates by using digital single set point control. For more details on product specifications, please do not hesitate to contact us.
by williamsu | Sep 26, 2012 | Product News

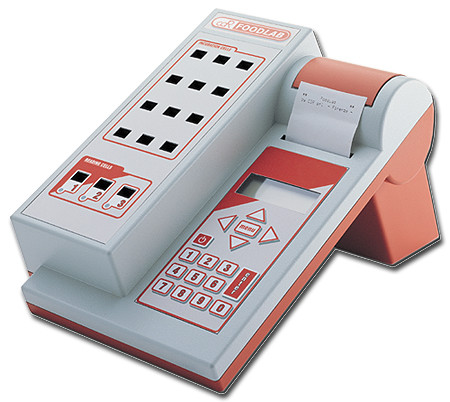

FoodLab is a fast, user-friendly and reliable analysis system for food like Milk, Eggs, Tomatoes, Vegetable puree, Cheese, Dairy products, Edible Fats, Oils and so on.
The system comprises:
- a thermostated analyzer based on photometric technology that uses solid-state emitters
- kit of reagents prepared by CDR research laboratories
- pipettes with fixed calibration to ensure a correct collection of Tester samples and an accurate dosing of reagents
- illustrated data sheets
- DVD with filmed methods
CDR FoodLab Method
FoodLab System use the innovative CDR FoodLab Method that consist in analytical methods simple, fast and designed to minimize losses: it is in fact possible to use microscopic samples (5-100 µl) either as is or after a limited treatment.
With its semplicity CDR FoodLab Method is ideal to be used during every production stages in food industry to performe quality control in real time
The CDR FoodLab Method protects the health of operators using low toxicity reagents that are Tester easily disposable and supplied in ready to use pre-filled cuvettes.
Fast
CDR FoodLab Method enables to quickly determine specific parameters in foodstuff:
- it required minimal sample preparation and handling or sample as it is
- reaction times vary according to the test and can last up to 3 minutes.
To further reduce testing times, it is also possible to perform test sessions on several samples up to a maximum of 14
Reliability, accuracy and reproducibility
CDR FoodLab Method guarantees maximum reliability, accuracy andreproducibility thanks to the Tester analyzer based on sophisticated photometric technology and on digital signal processing.
Furthermore, incubation and measuring cells, thermostated at 37°C and the possibility of aligning the system with reference standards and samples with known titration value guarantee an accurate standardization and maximum reproducibility of test results.
The analyzer is supplied pre-calibrated. Calibration curves are pre-installed, but it is also possible to quickly and easily perform customized calibrations.
Guaranteed quality: Correlation with ISO reference methods
The analytical method and the system have been assessed by Sinal certified laboratories like the Milk Standard Laboratory of the Italian Association of Milk Producers. The comparative tests for acidity (FFA), peroxides value (PV), soaps in fats, and oils and chlorides in milk have been performed by Neotron’s laboratories.
Results are correlated with international FIL/IDF reference methods.
User-friendliness
CDR FoodLab Method does not require specific calibration, cleaning and maintenance Tester operations and can therefore be easily used to assess quality in real time when raw materials are purchased, stored and during single production processes. If employed to monitor production processes, the system can also be used to run chemical analysis in batch mode. The availability of pre-programmed tests, which can be easily selected from the displayed menus, instruction sheets and filmed method help operator. Results are always automatically printed by the built-in printer.
